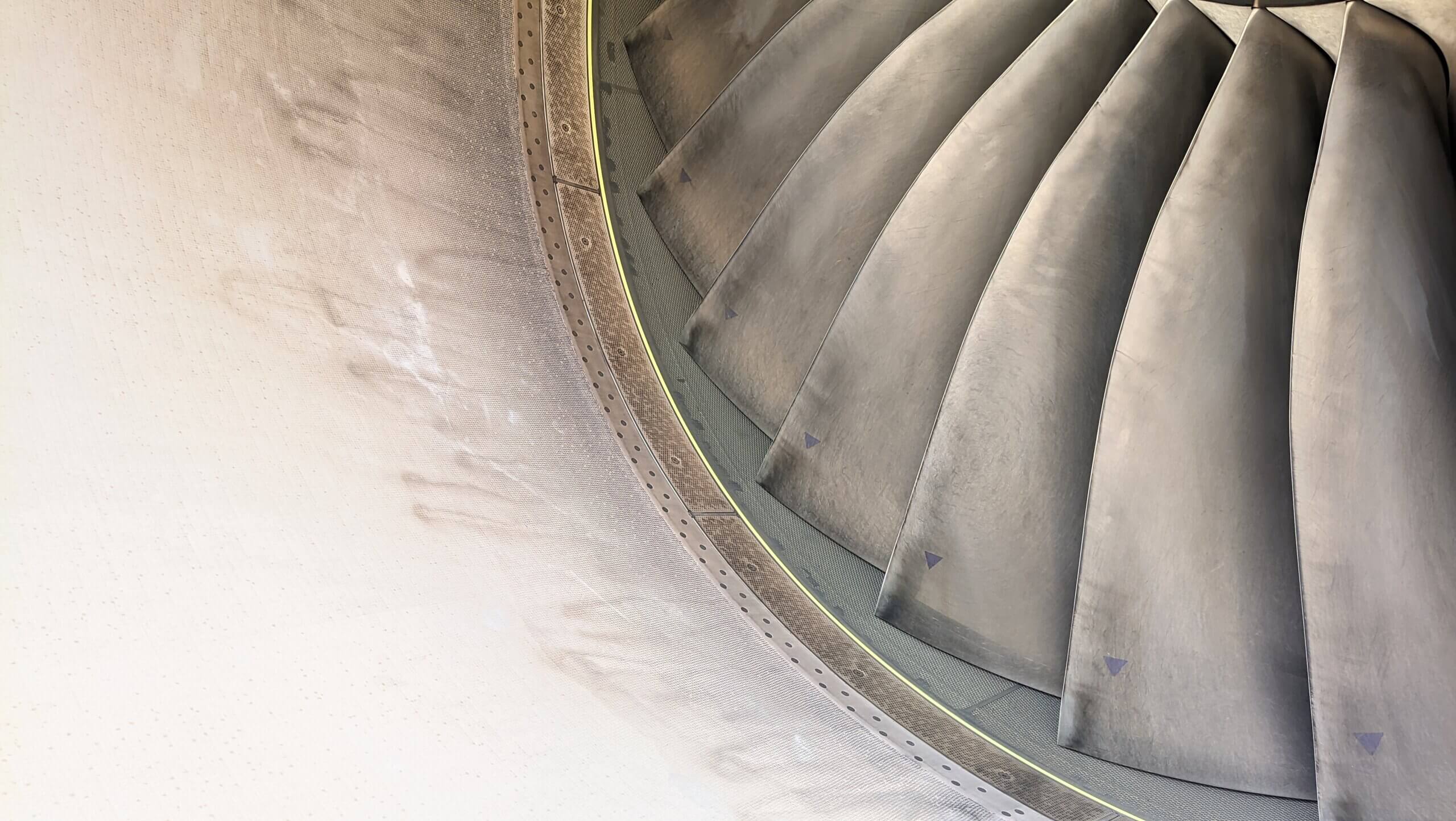

High temperature corrosion – turbines

Low to no emissions

OUR COMMITMENT

Our low-carbon processes help customers accelerate the achievement of their environmental ambitions faster and more effectively.

OUR 2030 GOAL

We will help our batch atmospheric processing customers reduce their greenhouse gas emissions by at least 125,000 tonnes of CO2e by 2030.

OUR PRIORITIES

• Lower carbon processing
• Customer saved emissions (Scope 1 and Scope 2)
• Avoided emissions (Scope 4)
• Carbon calculation

Sustainable end-markets

OUR COMMITMENT

Our technologies support emerging low-carbon industries such as clean tech, EV manufacturing and renewable energy generation sectors.

OUR 2030 GOAL

We will increase the proportion of revenue supporting sustainable end-use markets and applications to at least 20% by 2035.

OUR PRIORITIES

• Supporting low-carbon industries
• Enabling the development of wind, solar, wave and fuel cell technologies
• Accelerating the implementation of low-carbon solutions

Safe & compliant

OUR COMMITMENT

Our solutions improve product safety and assist with adherence to important compliance requirements.

OUR 2030 GOAL

We will work as the industry standard-setter for material science that prioritises safety, health, and the preservation of the planet.

OUR PRIORITIES

• Certified solutions (eg. REACH compliant)
• Improving sustainability performance (eg. via surface technology)
• Safer coatings (eg. HVOF coating)

Resource efficient

OUR COMMITMENT

Our treatments enable customers to achieve more with less by increasing durability, resilience, and sustainability performance.

OUR 2030 GOAL

We will provide specialist technologies and support research and development that enables customers to realise their growth and sustainability ambitions.

OUR PRIORITIES

• Specialist technologies that support customer sustainability
• Solutions that enable materials, energy, waste and water savings for customers (e.g. powder metallurgy, additive manufacturing)
• Involvement in customer R&D into more sustainable solutions

Zero harm

OUR COMMITMENT

We promote a safety-first culture to ensure that all our people return home from work safely and securely.

OUR 2030 GOAL

We will embed our zero harm culture Groupwide and drive continuous improvement in our performance.

OUR PRIORITIES

• Creating a zero-harm culture
• World-class EHS management system
• Governance, training, and accountability
• Near miss reporting for continuous improvement

Environmental leadership

OUR COMMITMENT

We are taking direct action to manage our use of natural resources and to improve the energy efficiency of our processes.

OUR 2030 GOAL

We will reduce our Scope 1 and Scope 2 emissions by 46%.

OUR PRIORITIES

• Specialist technologies that support customer sustainability
• Solutions that enable materials, energy, waste and water savings for customers (e.g. powder metallurgy, additive manufacturing)
• Involvement in customer R&D into more sustainable solutions

Engaged team

OUR COMMITMENT

We want to empower our expert team by giving them the tools, rewards, environment and resources they need to succeed.

OUR 2030 GOAL

We want to be recognised as one of the best companies to work for and commit to setting an employee engagement performance target in 2025.

OUR PRIORITIES

• Values, culture, and purpose
• Employee engagement
• Skills and career development
• Talent attraction and retention

Diverse workplace

OUR COMMITMENT

We are committed to creating a diverse and dynamic workplace in which everybody can thrive.

OUR 2030 GOAL

We will continue to increase diversity among our Board and senior management teams and work to become a leader in our industry.

OUR PRIORITIES

• Diversity in the workplace
• Gender and ethnicity representation
• Fair global working and recruitment practices

Atmospheric carburising

Carburising is accomplished by heating the metal in a carbon rich atmosphere above transformation temperature for a pre-determined time. Subsequent to carburising, parts are quenched to harden the surface carburising layer. The core remains unaffected. It is a widely used surface hardening process for low carbon steel. The industrial importance of carburising is expressed in its market share, as one third of all hardening heat treatment is covered by carburising and hardening.

Benefits of Atmospheric carburising

Carburising and quench produce hard surfaces which are resistant to wear. Moreover, failure from impact loading is avoided due to a softer core. Unlike case hardening processes, this process is usually used for deep case depths.

Talk to us Find out more about this process

Powdermet® - Near net shape (NNS)

Powdermet® NNS technology produces components with a high degree of complexity not possible via conventional means.

Benefits of Powdermet^® - Near net shape (NNS)

• Provides freedom and flexibility in design
• Designs are not limited by machining processes
• Improves material yield and efficiency
• Reduces material usage compared to conventional forging and machining techniques

Talk to us Find out more about this process

High Velocity Oxygen Fuel (HVOF) coating

High-Velocity Oxygen Fuel (HVOF) coating is a thermal spray coating process used to improve or restore a component’s surface properties or dimensions, thus extending equipment life by significantly increasing erosion and wear resistance, and corrosion protection.

Molten or semi-molten materials are sprayed onto the surface by means of the high temperature, high-velocity gas stream, producing a dense spray coating which can be ground to a very high surface finish.

The utilization of the HVOF coating technique allows the application of coating materials such as metals, alloys, and ceramics to produce a coating of exceptional hardness, outstanding adhesion to the substrate material and providing substantial wear resistance and corrosion protection.

As the technology specialists in HVOF coating, Bodycote provides an array of spray coating materials to suit your specific needs. Backed by a customer-driven service, our facilities process a wide variety of component sizes to exacting standards with reliable, repeatable results.

Benefits of High Velocity Oxygen Fuel (HVOF) coating

HVOF coating:

• Reduced costs;
• Improved performance;
• Improved electrical properties;
• Enabling components to operate in higher/lower temperatures;
• Enabling components to operate within harsh chemical environments;
• Improved efficiency; and
• Improved life of mating components

Talk to us Find out more about this process

Induction hardening

Induction hardening is used to increase the mechanical properties of ferrous components in a specific area. Typical applications are powertrain, suspension, engine components and stampings. Induction hardening is excellent at repairing warranty claims / field failures. The primary benefits are improvements in strength, fatigue and wear resistance in a localised area without having to redesign the component.

Benefits of Induction hardening

Favoured for components that are subjected to heavy loading. Induction imparts a high surface hardness with a deep case capable of handling extremely high loads. Fatigue strength is increased by the development of a soft core surrounded by an extremely tough outer layer. These properties are desirable for parts that experience torsional loading and surfaces that experience impact forces. Induction processing is performed one part at a time allowing for very predictable dimensional movement from part to part.

Talk to us Find out more about this process

Corr-I-Dur®

Corr-I-Dur® is a proprietary Bodycote thermochemical treatment for simultaneous improvement of corrosion resistance and wear properties through generating an iron nitride-oxide compound layer.

Benefits of Corr-I-Dur®

Corr-I-Dur® is favoured for components that are subjected to a corrosive environment in combination with wear. A very successful alternative to hard chromium, electroless nickel and various galvanic coatings through simultaneous improvement of corrosion and wear behaviour; Corr-I-Dur® layers have a very good bonding to the substrate as they are produced in a diffusion process. In many cases parts can be machined with the final dimensions and customers can skip additional steps such as grinding after the Corr-I-Dur® treatment.

Talk to us Find out more about this process

K-Tech ceramic coatings

Bodycote offers a unique range of thermochemically formed ceramic coatings for the prevention of wear and corrosion in a wide variety of industrial applications and for every type of surface.

Bodycote’s K-Tech ceramic coatings range, have been uniquely developed for applications in specific industries. Several formulae cover a virtually limitless number of potential applications which can be applied to most ferrous and some non-ferrous metals.

Chromium oxide ceramic material thermochemically bonded to customer specified areas on a part, including external diameters, internal diameters and some out-of-sight holes and ports. Individual ceramic particles are sub-micron in size and consist of mixtures of selected ceramic materials bonded together and to the substrate.

Benefits of K-Tech ceramic coatings

• Hardness
• Substantially improved component lifetime
• Low friction; the coated surface is anti-fouling
• Corrosion protection from absolutely dense, pore free barriers
• Increases bond strength
• Chemically, not mechanically, bonded
• Extraordinary wear resistance
• Effective coating of complex geometries and internal bores
• No measurable buildup on top of the plating/coating
• No pre-grinding required
• Increases plating/coating life by 4 to 10 times in most corrosive environments
• Resistant to thermal cycling/shock
• Superior sliding wear resistance and high electrical resistivity
• Extremely fine grain structure

Talk to us Find out more about this process

Plasma spray

Plasma spray is a thermal spray coating process used to produce a high quality coating by a combination of high temperature, high energy heat source, a relatively inert spraying medium, usually argon, and high particle velocities.

Plasma is the term used to describe gas which has been raised to such a high temperature that it ionizes and becomes electrically conductive.

The utilisation of plasma spray coating technology allows the spraying of almost any metallic or ceramic on to a large range of materials with exceptional bond strength, while minimising distortion of the substrate.

As the technology specialists in plasma spray, Bodycote provides an array of thermal spray coating materials to suit your specific needs. Backed by a customer-driven service, our facilities process a wide variety of component sizes to exacting standards with reliable, repeatable results.

Benefits of Plasma spray

The great advantage of the plasma spray coating technique is its ability to spray a wide range of materials, from metals to refractory ceramics, on both small and large components offering:

• corrosion protection
• wear resistance
• clearance control – abrasives and abradables
• heat and oxidation resistance
• temperature management
• electrical resistivity and conductivity

Talk to us Find out more about this process

Low pressure carburising (LPC)

LPC is an advanced technology that offers the design engineer an alternative to atmosphere carburising for improved case depth uniformity, dimensional control, part cleanliness, and process flexibility.

LPC is a method of pure carburisation combined with pure diffusion and is used to obtain a hardened surface and tough core, giving increased wear resistance and fatigue life, with minimal risk of treatment distortion.

The process gives high hardness below the surface compared to conventional carburising treatments, and allows precise control of case depth, microstructure and hardness, even for complex shapes and blind holes.

The process doesn’t create inter-granular oxidation on the surface of steels due to lack of oxygen in the atmosphere and eliminates the post grinding operations for parts that require higher surface quality and hardness.

LPC is a clean process carried out under vacuum, and has signifcantly lower environmental impact than atmospheric heat treatment technologies.

Benefits of Low pressure carburising

• The pitch to root ratio of the carburised layer (case depths) in gears is almost 1:1 (uniform).
• High hardness below the surface compared to conventionally carburised parts.
• Faster cycle times.
• Parts can be carburised between 930°C and 1000°C (1700° and 1830°F).
• Penetration of carbon in deep blind holes resulting in uniform hardness on the entire profile.
• Carburising of small holes and blind holes.
• Avoidance of part cleaning after the heat treatment due to high pressure gas quenching (dry quench).
• Reduction of dimensional alterations by temperature-independent heat transfer during high pressure gas quenching.
• Enhanced mechanical properties - elimination of inter-granular oxidation layer, improved fatigue properties.
  • Dimensional control - low distortion, predictable and repeatable
  • Environmentally friendly
  • Reduced manufacturing steps such as post grinding, cleaning and inspection
  • Enhanced cleanliness of products
  • Precise control of case depth, microstructure and hardness
  • Better case depth uniformity for complex shapes. Case depth uniformity can be maintained within ±0.002” in most cases.

Talk to us Find out more about this process

Boriding/Boronizing

Boriding is a thermochemical surface hardening method which can be applied to a wide range of ferrous, non-ferrous and cermet materials. The process entails diffusion of boron atoms into the lattice of the parent metal and a hard interstitial boron compound is formed at the surface. The surface boride may be in the form of either a single phase or a double phase boride layer.

Benefits of Boriding/Boronizing

Boriding provides a uniform hardness layer from the surface on to the entire depth of the diffused layer. The hardness achieved is many times higher than any other surface hardening process. The combination of high hardness and low coefficient of friction enhance wear, abrasion and surface fatigue properties. Other benefits associated with boriding are retention of hardness at elevated temperature, corrosion resistance in acidic environment, reduction in use of lubricants and a reduced tendency to cold weld.

Talk to us Find out more about this process

Carbonitriding

Carbonitriding is an austenitic (above A3) case hardening process similar to carburising, with the addition of nitrogen (via NH₃ gas), used to increase wear resistance and surface hardness through the creation of a hardened surface layer.

Benefits of Carbonitriding

Carbonitriding is applied primarily to produce a hard and wear resistant case. The diffusion of both carbon and nitrogen increases the hardenability of plain carbon and low alloy steels, and creates a harder case than carburising. The carbonitriding process is particularly suited for clean mass production of small components. Due to the lower temperature required for the carbonitriding, compared to carburising, distortion is reduced. Mild quenching speed reduces the risk of quench cracking.

Talk to us Find out more about this process

Ion/Plasma nitriding

Plasma nitriding (Ion nitriding) is a plasma supported thermochemical case hardening process used to increase wear resistance, surface hardness and fatigue by generation of a hard layer including compressive stresses.

Benefits of Ion/Plasma nitriding

The advantages of gaseous nitriding processes can be surpassed by plasma nitriding. Particularly when applied to higher alloyed steels, plasma nitriding imparts a high surface hardness which promotes high resistance to wear, scuffing, galling and seizure. Fatigue strength is increased mainly by the development of surface compressive stresses. Plasma nitriding is a smart choice whenever parts are required to have both nitrided and soft areas. The possibility of generating a compound layer free diffusion layer is often used in plasma nitriding prior to PVD or CVD coating. Tailor made layers and hardness profiles can be achieved.

Talk to us Find out more about this process

Gas nitriding

Gas nitriding is a thermochemical case hardening process used to increase wear resistance, surface hardness and fatigue life by dissolution of nitrogen and hard nitride precipitations.

Benefits of Gas nitriding

Favoured for components that are subjected to heavy loading, nitriding imparts a high surface hardness which promotes high resistance to wear, scuffing, galling and seizure. Fatigue strength is increased mainly by the development of surface compressive stresses. The wide range of possible temperatures and case depths, which allow adjustment of different properties of the treated parts, give gas nitriding a broad field of applications.

Talk to us Find out more about this process

Ferritic nitrocarburising – gas

Bodycote’s proprietary process of this low temperature surface treatment, called Lindure^®, involves the addition of oxygen. As a result, there are significant improvements of fatigue properties, adhesive wear resistance and anti-seize properties.

Benefits of Ferritic nitrocarburising – gas

The primary objective of ferritic nitrocarburising treatment is to improve the anti-scuffing characteristics of components. The compound layer exhibits significant improvement in adhesive wear resistance. With the introduction of nitrogen in the diffused zone fatigue properties are enhanced. An added benefit of the process is minimal distortion due to short process cycle within the ferrite phase.

Talk to us Find out more about this process

Neutral hardening

Also named martensitic or quench hardening, neutral hardening is a heat treatment used to achieve high hardness/strength on steel. It consists of austenitising, quenching and tempering, in order to retain a tempered martensite or bainite structure.

Benefits of Neutral hardening

There are several benefits of neutral hardening, depending on the steel type:

• Heavy loaded parts can be given an optimal combination of high strength, toughness and, if applicable, temperature resistance
• Such parts can be made lighter and more stiff, due to higher strength
• Tools and dies get the required high wear and/or heat resistance while maintaining toughness
• Parts that need grinding to low roughness, acquire the required machinability
• For all these purposes, if the parts are made of martensitic stainless steels, the corrosion resistance is only available after the heat treatment

Tool steels: the desired properties of high hardness, wear resistance, heat resistance and machinability can only be given by hardening.

Martensitic stainless steels: these steels only get their maximum corrosion resistance by hardening.

For all steel types: during the shaping of the parts, (takes place before the heat treatment), the material is relatively soft and therefore easy to machine.

Talk to us Find out more about this process

Ausbay quenching

Quenching technique (limited to certain high strength alloy steels) that reduces the residual internal stresses and distortion resulting from non-uniform transformation and thermal shock typical of conventional oil quenching.

Benefits of Ausbay quenching

Reduction in residual stress and distortion as compared to conventional oil quenching of selected high strength steels. May permit heat treatment of near net shape parts and minimise required machining/grinding of components after heat treatment.

Talk to us Find out more about this process

Austempering

Austempering is used to increase strength, toughness, and reduce distortion. Parts are heated to the hardening temperature, then cooled rapidly enough to a temperature above the martensite start (Ms) temperature and held for a time sufficient to produce the desired bainite microstructure.

Benefits of Austempering

Austempering is a hardening process for metals which yields desirable mechanical properties including:

• Higher ductility, toughness, and strength for a given hardness.
• Resistance to shock
• Reduced distortion, specifically with thin parts.

Talk to us Find out more about this process

Martempering/Marquenching

The purpose of Martempering/Marquenching is to delay the cooling for a length of time to equalise the temperature throughout the piece. This will minimise distortion, cracking and residual stress.

Benefits of Martempering/Marquenching

Reduced cracking due to thermal stress. Reduced residual stress in the quenched part section for parts with varying geometry, size, or weight.

Talk to us Find out more about this process

Press quenching

The controlled hardening in restraining dies, of close tolerance components, such as gears, bearing races etc. Ensures good dimensional control and uniform hardening.

Benefits of Press quenching

• Favoured for large round or flat components;
• Elimination of distortion, and thereby reduction of post heat treatment machining; and
• An important cost saving factor.

Talk to us Find out more about this process

Double hardening

Sometimes, due to misuse of language, double hardening means long duration of austenitisation or long carburising time, followed by a soft hardening or a slow cooling outside the heating chamber (like an annealing step) and re-austenitisation followed by a hardening step (quench).

Double hardening also involves hardening a carburised part twice whereby the first hardening is carried out from the hardening temperature of the core part, and the second from the hardening temperature of the case (see DIN 17014).

Benefits of Double hardening

• Refined grain size and microstructure of the core of the part, grown during long duration at high temperature
• Avoids surplus/retained austenite content in the case depth
• Reduces or limits the distortion level of parts with complex shapes
• Adjusts more precisely the hardness of the core and the case

Talk to us Find out more about this process

Tempering

Tempering is a low temperature (below A1) heat treatment process normally performed after neutral hardening, double hardening, atmospheric carburising, carbonitriding or induction hardening in order to reach a desired hardness/toughness ratio.

Benefits of Tempering

The maximum hardness of a steel grade, which is obtained by hardening, gives the material a low toughness. Tempering reduces the hardness in the material and increases the toughness. Through tempering you can adapt materials properties (hardness/toughness ratio) to a specified application.

Talk to us Find out more about this process

Solution and age: Aluminium alloys

There are a number of wrought and cast aluminium alloys that can be strengthened by solution treating and aging to a variety of different tempers.

Benefits of Solution and age: Aluminium alloys

The mechanical properties of heat treatable alloy components can be optimised by the selection of an appropriate solution and age process sequence. For certain alloys, corrosion resistance can, for example, be improved at the expense of strength and vice versa.

Depending on the alloy and cross section at the time of solution treatment, various cooling methods can potentially be utilised to reduce distortion.

Talk to us Find out more about this process

Solution and age: Nickel alloys

Solution treatment is the heating of an alloy to a suitable temperature, holding it at that temperature long enough to cause one or more constituents to enter into a solid solution and then cooling it rapidly enough to hold these constituents in solution. Subsequent precipitation heat treatments allow controlled release of these constituents either naturally (at room temperature) or artificially (at higher temperatures).

Benefits of Solution and age: Nickel alloys

There are a multitude of cast and wrought nickel-based alloys that can have various desirable characteristics enhanced by either solution treating or by solution treating and precipitation age hardening. Characteristics such as room temperature and/or elevated temperature mechanical strength, corrosion resistance and oxidation resistance are typically enhanced by such heat treatments.

Talk to us Find out more about this process

Precipitation hardening: Stainless steels

Precipitation heat treatments strengthen materials by allowing the controlled release of constituents to form precipitate clusters which significantly enhance the strength of the component.

Benefits of Precipitation hardening: Stainless steels

There are a multitude of cast and wrought stainless steel alloys that can have various desirable characteristics enhanced by either solution treating or by solution treating and precipitation age hardening. Characteristics such as room temperature and/or elevated temperature mechanical strength and corrosion resistance are typically enhanced by such heat treatments.

Talk to us Find out more about this process

Annealing

Typically, in steels, annealing is used to reduce hardness, increase ductility and help eliminate internal stresses.

Benefits of Annealing

Annealing will restore ductility following cold working and hence allow additional processing without cracking. Annealing may also be used to release mechanical stresses induced by grinding, machining etc. hence preventing distortion during subsequent higher temperature heat treatment operations. In some cases, annealing is used to improve electrical properties.

Talk to us Find out more about this process

Recrystallisation

Recrystallisation is a process accomplished by heating whereby deformed grains are replaced by a new set of grains that nucleate and grow until the original grains have been entirely consumed.

Recyrstallisation annealing is an annealing process applied to cold-worked metal to obtain nucleation and growth of new grains without phase change. This heat treatment removes the results of the heavy plastic deformation of highly shaped cold formed parts. The annealing is effective when applied to hardened or cold-worked steels, which recrystallise the structure to form new ferrite grains.

Benefits of Recrystallisation

• allows recovery process by reduction or removal of work-hardening effects (stresses)
• increases equiaxed ferrite grains formed from the elongated grains
• decreases the strength and hardness level
• increases ductility

Talk to us Find out more about this process

Normalising

Normalising aims to give the steel a uniform and fine-grained structure. The process is used to obtain a predictable microstructure and an assurance of the steel’s mechanical properties.

Benefits of Normalising

After forging, hot rolling or casting a steel’s microstructure is often unhomogeneous consisting of large grains, and unwanted structural components such as bainite and carbides. Such a microstructure has a negative impact on the steel’s mechanical properties as well as on the machinability. Through normalising, the steel can obtain a more fine-grained homogeneous structure with predictable properties and machinability.

Talk to us Find out more about this process

Subcritical annealing/Intercritical annealing

Sub-critical annealing (or sub-critical treatment) is annealing carried out slightly below the eutectoid temperature (Ac1 point = eutectoid transformation (723°C for carbon-steels)). Sub-critical annealing does not involve the formation of austenite, while intercritical annealing involves the formation of ferrite and austenite (< 0.8%C carbon-steels).

Benefits of Subcritical annealing/Intercritical annealing

The aim of the soft annealing process is to form an even distribution of spheroidal carbides in the steel, which will make the material softer and tougher. Normally, increasing the size of the spheroids will increase the steel’s machinability.

Talk to us Find out more about this process

Soft annealing

Soft annealing is a high temperature heat treatment process performed around A1. As the name suggests the aim of the process is to make a material as soft as possible. After soft annealing the material will have a soft and easy to machine structure.

Benefits of Soft annealing

Steels with higher carbon content, and most high-alloy steels, which are allowed to air cool after hot working, such as forging or hot rolling, are usually hard to machine. Soft annealing reduces the hardness and makes the material easier to machine. Soft annealing of low carbon steels < 0,35% C will normally result in a structure too soft and sticky for cutting operations.

The risk of hardening cracks during re-hardening of quenched and tempered steel can be reduced by soft annealing prior to the hardening and tempering process.

Talk to us Find out more about this process

Ion implantation

Bodycote’s Implantec process can be used to improve the friction coefficient, adhesive wear and surface hardness of polymers and metals by bombarding surfaces with a high energy ion beam.

Benefits of Ion implantation

Ion implantation has a number of benefits, including:

• Surface hardening of the material, thus making it very resistant to wear, particularly adhesive wear;
• Reduction of friction coefficient, which reduces seizure;
• Increased fatigue limit by up to 30%;
• Surface treatment with no rise in temperature (cold metallurgy);
• No geometric distortion;
• Preservation of the state of the surface (e.g., super finishing) and its mechanical characteristics (e.g., low temperature tempered steel);
• No peeling (it is not a coating); and
• Greatly improved resistance to corrosion.

The process is carried out locally and on pieces that are already fully machined, and can be applied to metals, polymers or elastomers.

Talk to us Find out more about this process

Stress relieving

Stress relieving is carried out on metal products in order to minimise residual stresses in the structure thereby reducing the risk of dimensional changes during further manufacturing or final use of the component.

Benefits of Stress relieving

Machining, and cutting, as well as plastic deformation, will cause a build up of stresses in a material. These stresses could cause unwanted dimension changes if released uncontrolled, for example during a subsequent heat treatment. To minimise stresses after machining and the risk for dimension changes the component can be stress relieved.

Stress relieving is normally done after rough machining, but before final finishing such as polishing or grinding.

Parts that have tight dimensional tolerances, and are going to be further processed, for example by nitrocarburising, must be stress relieved.

Welded structures can be made tension free by stress relieving.

Talk to us Find out more about this process

Hydrogen brazing

Hydrogen brazing is a braze process that uses the cleaning (reducing) properties of high purity hydrogen to improve the flow characteristics of the braze alloy. The hydrogen atmosphere reduces surface oxides on the parent material, enabling the braze alloy to flow (wet) more effectively to create a high integrity braze joint.

Benefits of Hydrogen brazing

• Cleanliness – the reduction of surface oxides on the parent material improves the cleanliness and integrity of the braze joint.
• Increased braze alloy and parent material options – enables the use of high vapour pressure braze alloys and parent materials that cannot be brazed within a vacuum atmosphere.

Talk to us Find out more about this process

HIP diffusion bonding

HIP diffusion bonding is used to create a usually solid state bond between two or more materials (either solid or powder) in contact with each other without adhesive, allowing for higher service temperatures and a stronger metallurgical bond.

Benefits of HIP diffusion bonding

HIP diffusion bonding allows dissimilar materials to be bonded together without the temperature limitations of adhesives. It forms a metallurgical bond with diffusion occurring on an atomic level. It allows premium materials to be bonded to more economical substrates selectively only where the premium material properties are needed, greatly extending lifetimes of critical components in corrosive and/or erosive environments and in elevated temperature applications.

Talk to us Find out more about this process

Electron beam welding

Electron beam welding (EBW) is a specialist metal joining technique used to create high integrity joints with minimal distortion.

Benefits of Electron beam welding

• Low heat input for the welded parts;
• Minimal distortion;
• Narrow melt zone (MZ) and narrow heat affected zone (HAZ);
• Deep weld penetration from 0.05 mm to 200 mm (0.002” to 8”) in single pass;
• High welding speed;
• Welding of all metals even with high thermal conductivity;
• Welding of metals with dissimilar melting points;
• Vacuum process yields in clean and reproducible environment;
• Natural welding process for oxygen greedy materials such as titanium, zirconium and niobium;
• Machine process guaranteed for reliability and reproducibility of the operating conditions;
• Cost-effective welding process for large production in automatic mode; and
• Parts can mostly be used in the as welded condition - no sub-machining required.

Talk to us Find out more about this process

Induction brazing

Induction brazing is when two or more materials are joined together by a filler metal that has a lower melting point than the base materials using induction heating. In induction heating, usually ferrous materials are heated rapidly from the electromagnetic field that is created by the alternating current from an induction coil.

Benefits of Induction brazing

• Brazing provides design and manufacturing engineers an opportunity to join simple as well as complex designs.
• The process is fast enabling a quick throughput of parts.
• Allows brazing of very defined and selective areas

Talk to us Find out more about this process

Furnace/vacuum brazing

Furnace brazing is a semi-automated process by which metal components are joined using a dissimilar lower filler metal. Furnace brazing allows design and manufacturing engineers to join simple or complex designs of one joint or multi-joint assemblies.

One of the most common forms of furnace brazing is accomplished in a vacuum furnace and referred to as vacuum brazing. Parts to be joined are cleaned, brazing filler metal applied to the surfaces to be joined, then placed into the furnace. The entire assembly is brought to brazing temperature, after the furnace has been evacuated of air, to eliminate any oxidation or contamination occurring as the braze filler metal melts and flows into the joints.

Benefits of Furnace/vacuum brazing

• Cost effective process
• Reproducible high integrity metal joining process
• Allows the joining of unweldable, dissimilar and non-metallic materials
• Brazing provides design and manufacturing engineers an opportunity to join simple as well as complex designs with one joint or several hundred joints

Talk to us Find out more about this process

Specialty stainless steel processes (S³P)

Specialty stainless steel processes (S³P) featuring Kolsterising® technology offer unique surface hardening solutions for austenitic stainless steel, nickel-based alloys and cobalt-chromium alloys producing increased mechanical and wear properties without adversely affecting corrosion resistance.

Benefits of Specialty stainless steel processes (S³P)

• Increased surface hardness to 900-1300 HV0.05 (depending on base material and surface conditions)
• Properly selected and designed materials and parts maintain corrosion resistance
• Treated parts offer colour and dimensional stability
• No post treatment is necessary
• No risk of delamination
• The paramagnetic properties of austenitic materials remain unchanged after treatment
• Eliminates fretting and galling
• Highly resistant to surface wear environments such as sliding in combination with abrasive wear and cavitation erosion.

Talk to us Find out more about this process

Powdermet® simple shape

Production of simple shape components by hot isostatically pressed (HIPed) metal, polymer, ceramic or composite powders produces ingots with superior initial material properties. These shapes are typically preforms for follow-on operations such as forging or extruding or for products that can be easily machined to final dimensions. Powder metallurgy (PM) HIP simple shapes also encompass HIP cladding which allows dissimilar materials to be bonded and co-extruded.

Benefits of Powdermet® simple shape

• Powder metallurgy HIP allows shorter delivery times in comparison to conventional processing routes such as forging
• Isotropic mechanical properties exist due to small, uniform grain size and fine, evenly dispersed second phase particles
• Metal powder processing enables a higher alloy content than in traditionally melted and solidified alloys which results in superior materials properties
• Solid state processing method minimises segregation, thereby optimising corrosion resistance
• Enables creation of fully dense alloys and microstructures not obtainable by other fabrication methods
• Narrow scatter band of mechanical property variability in comparison to castings and forgings
• Powder metallurgy HIP provides increased wear resistance and toughness versus other production methods by achieving a fine, uniform carbide dispersion
• Achieves higher cutting speeds and longer lifetimes than conventionally processed tooling materials
• Powder metallurgy HIP can produce sleeved ingots of two different materials to be co-extruded

Talk to us Find out more about this process

Hot isostatic pressing

Hot isostatic pressing (HIP) is a manufacturing process used to eliminate internal microporosity in metal castings and other materials. HIP also enables the densification of metal, polymer, ceramic and composite powders in the solid state. Both of these methods result in superior material properties.

Benefits of Hot isostatic pressing

• Eliminates all internal voids in castings and metallic components created by additive manufacturing methods
• Decreases casting inspection rejection rate
• Improves product consistency
• Improves soundness and mechanical properties (fatigue life, ductility, impact strength) of castings, potentially allowing sleeker design
• Enhances vacuum tightness and machined surface finish of castings
• Produces full density material from metal, composite, polymer or ceramic powders without melting
• From powders, creates solid material with superior properties due to fine, uniform grain size and isotropic structure
• Enables unique powder blends to be combined into solids that would not be possible to form by other manufacturing methods
• Produce complex-shaped solid components from powders
• Improves toughness, ductility, fatigue strength, and consistency of metal injection moulded (MIM) parts
• Bonds dissimilar metals without the need of temperature-limiting adhesives
• Produce clad components via HIP bonding.

Talk to us Find out more about this process

Casting densification

Hot isostatic pressing (HIPing) for densification of metal castings occurs by application of gas pressure at an elevated temperature where internal microporosity is eliminated by plastic deformation and diffusion bonding.

Benefits of Casting densification

• HIP improves product consistency with less variation in mechanical properties.
• Typically tensile and proof strengths increase by around 5% and ductility by up to 50%, although the degree of casting property improvement is dependent on many parameters including the initial as cast quality.
• Fatigue properties significantly increase following HIP with up to tenfold fatigue life improvements achieved, producing properties comparable to similar wrought alloys.
• Impact strength, toughness, and machined surface finish are all enhanced.
• Property improvements may allow castings to be considered for new applications and/or allow a redesign of existing components to a more cost effective solution.
• Shrinkage defects, creep voids and internal cracks are removed.
• HIP allows recovery of castings that would otherwise be rejected based on x-ray inspection.
• By eliminating microporosity, HIP removes fatigue crack initiation sites.

Talk to us Find out more about this process

HIP cladding

Diffusion bonding of solid to solid or solid to powder metallurgy material, to produce a bi-metallic component with premium material properties on selected surfaces by encapsulation and hot isostatic pressing.

Benefits of HIP cladding

• Cladding thickness is not limited in comparison to other coatings
• Ability to join metals/composites that cannot be bonded by conventional techniques
• Allows a more economical substrate to be utilised for the majority of the part thereby saving material costs
• Strength of the joint can match that of the substrate
• Production of bi-metallic components without the need for welding or fastening techniques, reducing the risk of failure during manufacture
• Improves life and performance compared to components fabricated solely by the substrate alloy
• Allows manufacture of components with dimensions near to finish form, with limited machining or finishing operations which reduces the number of processing steps and significantly shortens lead time compared to wrought and coated components.

Talk to us Find out more about this process

HIP cladding

Joining of two incompatible materials by the HIP process with the use of a brazing interlayer.

Benefits of HIP brazing

• Enables bonding of materials with no solid state solubility
• Allows the design engineer to combine very different material properties in close proximity
• Produces bond lines free from porosity with good mechanical properties
• Creates joints superior to conventional brazing.

Talk to us Find out more about this process

Densal®

Bodycote offers Hot Isostatic Pressing, a casting densification service specifically for aluminium to remove porosity and increase the performance of aluminium alloys. Among these is Densal®, exclusively offered by Bodycote.

After several years of trials and verifications within the automotive industry, Bodycote’s team of technical experts developed the Densal® process. Since its launch, Densal® has been adopted and integrated into the production processes of major OEMs and their Tier 1 suppliers. It has successfully improved aluminium components and generated cost savings for the supply chain.

Using Densal® in combination with best practice foundry techniques result in a significant improvement in the mechanical properties of cast parts, producing high quality, porosity-free cast aluminium components.

Benefits of Densal®

• Increased mechanical strength
• Longer fatigue life
• Uniform mechanical properties
• Pore-free machined surfaces
• Reduced property scatter
• Improved x-ray inspection acceptance
• Enhanced surface finish

Talk to us Find out more about this process

Simulation and analysis

Process modeling tools based on finite element analysis (FEA) to predict densification and shape change during encapsulated hot isostatic pressing (HIP) of powder materials.

Benefits of Simulation and analysis

• Allows iterative, virtual fabrication steps to optimize component design
• Provides shorter production lead times and fewer finish machining operations
• Enhances cost savings and better utilization of hard to machine and expensive material powders
• Promotes customer collaboration to cover all requirements and inputs
• Allows designs that minimize welding, machining and material usage
• Creates solutions not possible with conventional manufacturing methods.

Talk to us Find out more about this process

Laboratory services for HIP

Technical support provided to increase customer understanding of HIP benefits, provide quality assurance, and offer internal development of new products or services.

Benefits of Laboratory services for HIP

• Increased customer understanding in the benefits of HIP
• Quality assurance for integrity of PM densification and HIP cladding
• Internal development/testing of new products/services
• Evaluation of the effect of HIP on novel material combinations
• Testing to applicable ASTM and MPIF standards
• Failure analysis tool
• Collaboration with customers for development projects
• Technical support for Bodycote and our customers.

Talk to us Find out more about this process

Ion/Plasma Nitrocarburising

Ion/Plasma Nitrocarburising is a shallow case variation of the nitriding process. This process is done mainly to provide an anti-wear resistance on the surface layer and to improve fatigue resistance.

Benefits of Ion/Plasma nitrocarburising

• Relative low cost;
• High resistance to wear;
• Excellent scuffing and seizure resistance;
• Fatigue properties improved by up to 120%;
• Considerably improved corrosion resistance;
• Good surface finish;
• Negligible shape distortion;
• Predictable growth characteristics; and
• Alloy substitution - plain carbon steels replacing low alloy steels.

Talk to us Find out more about this process

Electric arc wire

Electric arc spraying is a thermal spraying process that uses an electric arc between two consumable electrodes of the surfacing materials as the heat source. This is a cost effective, high throughput coating process typically used for thick build-up and surface restoration applications. It can also produce excellent metallic coatings such as Molybdenum, Aluminum, NiAl, and Zinc used for wear and corrosion protection.

Arc wire can be used to produce a wide range of surface finishes. The process uses a positive and negative charged dual-wire system and then uses high-pressure air or gas to atomize and propel the coating to the work surface.

We provide comprehensive, cost-effective electric arc wire spraying capabilities that allow our customers to improve their operational efficiencies and reduce maintenance costs through our surface technology services.

Benefits of Electric arc wire

• High quality, cost-effective solution
• Strong, dense surface finish
• Gripping and anti-skid surfaces
• Low process temperature
• High material output per hour
• Resistance to many corrosive environments

Talk to us Find out more about this process

Anodising

Anodising is used to produce protective and decorative oxide layers on aluminium, improving corrosion protection and wear resistance. Different colours are created by dyeing or electrolytic colouring.

Benefits of Anodising

• Long life time and environmentally beneficial
• Tolerance accuracy

Talk to us Find out more about this process

Slurry coatings

Slurry coatings usually start as a liquid or slurry and can be applied by air spray, dip spin, or hand brushed.  The application of the coating is followed by a thermal cure. Typical coatings include;

Corrosion Coatings

This technology is used in the gas turbine industry to coat compressor components,  such as blades, vanes, blisks, and rotors. Typically used as a sacrificial or corrosion inhibiting layer for atmospheric protection, this process applies a paint-like, thermally cured coating. This process is typically designed for the low temperature, compressor side of the turbine engine, and can be sprayed to very smooth surface finishes of less than 20aa with no further finishing required. Typically, metallic and ceramic based slurries are used for these applications. They can be a single layer or bi-layer with both a sacrificial and sealing layers.

Dri-Film Lube

Dri-Film Graphite or Moly Disulfide Lube and PTFE coatings are used to provide lubricating properties to a wide variety of components.  This can aid installation or provide lubrication when oils and grease are not practical.   Coated components can be metals for engine or structural components or elastomers, such as O-rings.  Temperature limitations are typically 650’F or less depending on specific coating and substrate limitations.

Benefits of Slurry coatings

• Flexible methods of application.
• Relatively thin, range from approximately .0005 degrees - .0035 degrees.
• Allows for lower cost substrate material to be utilized and still provide corrosion resistance.
• Reduces the risk of damage during installation.
• Can be stripped easily and reapplied during overhaul and repair cycles.

Talk to us Find out more about this process

Vapor phase aluminide (VPA)

This type of aluminide coating is also referred to as VPA or Above-The-Pack. At Bodycote, our Vapor Phase Aluminide (VPA) coating is an above-the-pack process where components are placed in a heated inert atmosphere, surrounded by CrAl donor material.  The donor material does not contact the parts directly.

During thermal processing, the aluminum in the donor material and halide activator vaporize in the presence of a carrier gas and condense onto the target parts.  It then further diffuses into the substrate and combines with nickel, forming a nickel aluminide.  The resulting coating contains both a diffused and additive layer.  In hot service, a durable oxide scale is formed, which protects the component from further oxidation.  This VPA process can also be used to coat the internal passages of parts, such as turbine blades.  Additionally, VPA can be combined with platinum plating to form platinum aluminides or with a change in donor material can be used for Vapor Phase Chromizing (VPC), both for hot corrosion resistance.

Benefits of Vapor phase aluminide (VPA)

• Cost-effective solution to increase hot oxidation and corrosion resistance on superalloys
• Relatively thin at approximately .001”-.003” additive layer
• Capable of coating internal passages
• Can be combined with other thermal barrier coating processes to further enhance protection
• Robust processing once developed
• Used on a wide variety of superalloys

Talk to us Find out more about this process

Combustion spraying

Combustion spraying (sometimes referred to as Flame spraying) is a thermal spray coating process used to apply relatively inexpensive coatings that typically contain high levels of oxides and porosity together, with the option of achieving a rough surface finish.

In the combustion spraying process, a gas stream produced by the chemical reaction between oxygen and a combustion fuel heats a consumable propelling it onto a substrate to form a surface coating.

As the surface technology specialist in combustion spraying, Bodycote provides an array of spray coating materials to suit your specific needs. Backed by a customer-driven service, our facilities process a wide variety of component sizes to exacting standards with reliable, repeatable results.

Benefits of Combustion spraying

Combustion spray coatings offer the following benefits:

• Corrosion protection
• Wear resistance
• Clearance control – abrasives and abradables
• Heat and oxidation resistance
• Temperature management
• Electrical resistivity and conductivity
• Manual thermal spraying is ideal when:
  • Component geometry or working environment requires flexible access
  • Large and complex areas (e.g., structural components) need coverage
  • Flame spraying meets the required coating performance
  • A cost-effective solution is preferred

Talk to us Find out more about this process
